Relay Working Mode – Momentary, Toggle and Latched

Common RF remote control switch / RF relay board can be chosen from either of 3 working modes:  Momentary, Latched or Toggle. These 3 working modes are either by using different 2272 decoder ICs (2272-M4 for Momentary, 2272-L4 for Latched, 2272-T4 for Toggle) or using our programmable smart RF relay board (using Jumpers and MCUs).

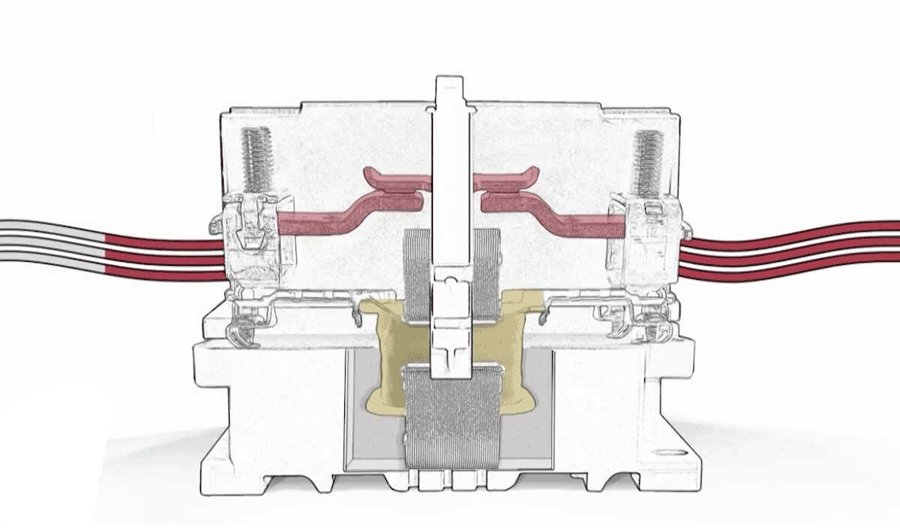

inside-relay-switch-new

Short Description of Momentary/Latched/Toggle Working Modes

Single Relay Operating Modes

Momentary: Press->On; Release->Off (For single relay)

Toggle: Press->On; Press again->Off (For single relay)

Relay Group Operating Modes

Latch On: Press->On; Latch Off: Press->Off (For relay group, only one relay will be on at a time, e.g. Press A, Relay A will be on, and B,C,D will be off)

Today more and more RF relay boards use an advanced MCU to decode the wireless signal and switching between Momentary/Toggle/Latched working modes using on board Jumper, which will be far more convenient for end users to decide the working modes by their own.

For more information on the working modes or want to get a quote for customized RF remote control switch / RF relay board design, please contact us: sales@solidremote.com

At Solidremote, we offer RF remote control switch / RF relay board design service, and can easily bring the design into production since we are a professional factory, you can request a free quote by contact us.
